Features:
- Precision screw pump feeding ensures high feeding accuracy and low pulsation.
- The buffer tank is equipped with a stirring function and can be automatically turned on and off.
- It can be used independently or linked with a coating machine, with touch screen operation.
- Buffer tanks of different volumes can be optionally configured.
- A filtering device can be optionally configured.
- Screw pumps of different models can be optionally configured.
- Liquid level detection function can be optionally configured.
| Technical Specification | ||
|---|---|---|
| Power | Single-phase AC220V±10% (AC110V±10% is customizable), frequency 50/60Hz, power 500W | |
| Feeding pump | Model | Japanese Hyosung screw pump; optional screw pump models: 04/06/08 |
| Capacity | Pump 04: approx. 0.23ml/r
Pump 06: approx. 0.9ml/r Pump 08: approx. 2.0ml/r (The above data are empirical values of the screw pump, for reference only) |
|
| Stator | Material: EPDM, PTFE is customizable | |
| Rotation Speed | Max.150r/min | |
| Buffer tank | SUS304 stainless steel; standard volume: 5L; optional volume: 2L/10L | |
| Mixing speed | Approx. 27r/min, anchor-type mixing | |

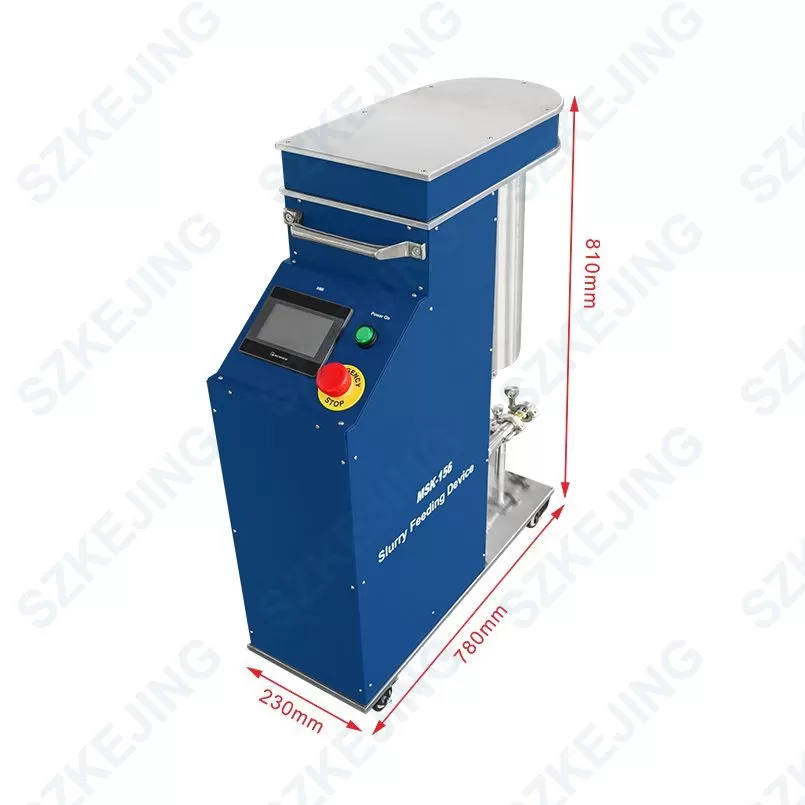

| Dimension | a) Device with optional 2L buffer tank: About L700xW230xH680mm
b) Device with optional 5L buffer tank: About L700xW230xH830mm c) Device with optional 10L buffer tank: About L700xW300xH860mm |
|
| Weight | a) Device with optional 2L buffer tank: About 50Kg
b) Device with optional 5L buffer tank: About 58Kg c) Device with optional 10L buffer tank: About 70Kg |
|
| Warranty | 1 year | |
